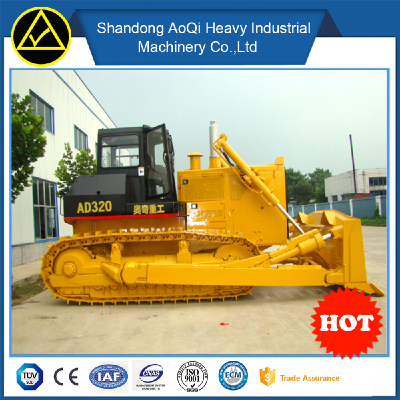

AOQI High Quality 320HP Hydraulic Crawler Bulldozer AD320 With Lowest Price
Main Specifications:
Straight Tilt blade capacity: 12.9m3
Engine model: CUMMINS NTA855-C360
Engine rated power: 320HP--2000r/min
AD320 Bulldozer Features:
1. New blade is more durable and capacious.
2. The Alarming and Monitoring system are high efficiency and reliable.
3. Reliable manual-operated spool valve and external mounted multi-valve
4. Adopted the model NTA855-C360 CUMMINS engine, which has strong power and
torque output,low fuel consumption , reliable controls.
5. Hydraulic power transmission, automatic speed change, shifting the gear without
stop the vehicle.
6. Three-element, single stage and single phase torque convertor,which has high
efficiency and larger capacity.
AD320 Bulldozer Parameter:
ITEM | UNIT | DATA | ||||
DIMENSION AND WEIGHT | ||||||
Overall dimension(L*W*H) | mm | 8560*4130*3750 | ||||
Machine Weight (with ripper) | kg | 39675 | ||||
Machine Weight (without ripper) | kg | 35900 | ||||
TRANSMISSION SYSTEM | ||||||
Torque convertor | 3-element,single stage, single phase | |||||
Cooling method | Water cooled | |||||
Power-shift transmission
| Planetary gear,multi-disc clutch, hydraulic connected, Forced lubrication by gear pump | |||||
Main drive | Spiral bevel gear, splash lubrication | |||||
ENGINE | ||||||
Engine model | CUMMINS | NTA855-C360 | ||||
Flywheel power | HP | 320 | ||||
Engine rated torque | N.m/(r/min) | 1440/2000 | ||||
Min .fuel consumption | g/kw.h | 245 | ||||
WORKING EQUIPMENT AND ATTACHMENT | ||||||
Working pressure | Mpa | 13.7 | ||||
Oil pump type | Gear pump | |||||
Rated flow | L/min | 335 | ||||
Width of straight tilt blade | mm | 4130 | ||||
Height of straight tilt blade | mm | 1590 | ||||
Lifting height | mm | 1560 | ||||
Controlling valve | Manual-operated, servo controlling | |||||
TRACK | ||||||
Pitch | mm | 228.6 | ||||
Width of track shoe | mm | 560 | ||||
Number of track shoe | 41(Each side) | |||||
Length of track on ground | mm | 3150 | ||||
Track gauge | mm | 2140 | ||||
Ground pressure | Mpa | 0.093 | ||||
DRIVE SYSTEM | ||||||
1st | 2nd | 3rd | ||||
Forward | 3.6km/h | 6.6km/h | 11.5km/h | |||
Reverse | 4.4km/h | 7.8km/h | 13.5km/h | |||
Sprocket wheel | 1(Each side) | |||||
Number of track roller | 7(Each side) | |||||
Number of carrier roller | 2(Each side) | |||||
Number of idler | 1(Each side) |
Shandong Aoqi Heavy Industrial Machinery co., Ltd
Our company Shandong Aoqi Heavy Industrial Machinery co.,Ltd is located in Shandong province of China.
Our products consist of Track crane, Crawler crane, Mining dump truck, Bulldozer, Rough terrain crane,
Motor grader and Pipe layer. And all of our products have been passed the certification of China national
construction machinery quality supervising test center and the ISO9001-2008 certification. Much of our
products have been exported to Africa, South American, South-east Asia and Mid-east, and the quality and
best after-sale service of our products have been widely recognized by our buyers.
Welcome to visit our factory in China and discuss the issues of cooperation, we will provided best product and first-class service for you.
After Sale Service:
According to customer requirements, we provide onsite training in China or Overseas.
Professional services team can provide the trouble shoot, inspection and maintenance.
Plenty of spare parts can satisfied your regular spare parts request.
