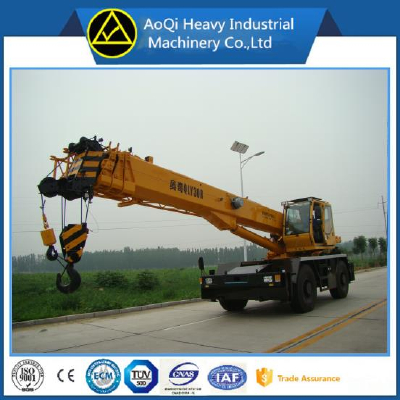

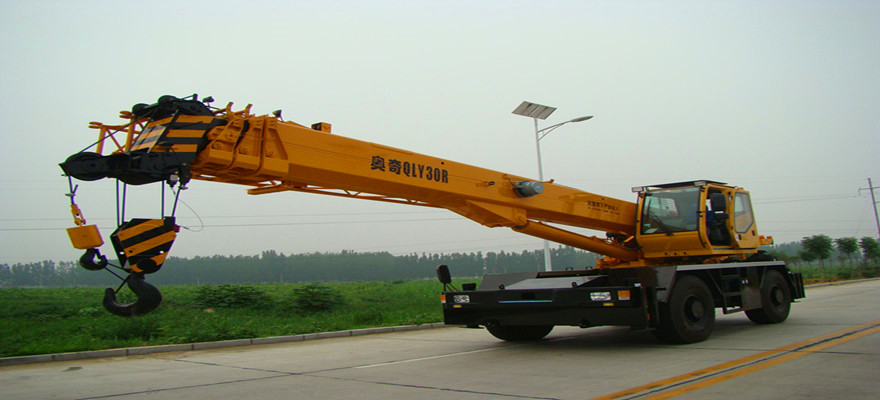

AOQI High Quality 30Ton Rough Terrain Crane QRY30 With Lowest Price
Main Specifications:
Rated lifting capacity: 30Ton
Engine model: CUMMINS ISDe230 30
Engine rated power: 230HP--2200r/min
1 | MAX.LIFTING TORQUE | kN·m | 1120 | |
2 | MAX. RATED LIFTING CAPACITY | kg | 30000 | |
3 | BASIC BOOM LENGTH | mm | 9800 | |
4 | FULL EXTENSION BOOM LENGTH | mm | 31000 | |
5 | MAX. ELEVATON ANGLE OF BOOM | (°) | 80 | |
6 | MIN.ELEVATION ANGLE OF BOOM | (°) | -3 | |
7 | LONGITUDINAL SPAN OF OUTRIGGER | mm | 6810 | |
8 | LATERAL SPAN OF OUTRIGGER | mm | 6800 | |
9 | MAX.SPEED OF SINGLE LINE | m/min | 83 | |
10 | LUFFING TIME | HOISTING BOOM | s | 77 |
LOWER BOOM | 28 | |||
11 | TELESCOPING TIME | FULL EXTENSION TIME | s | 90 |
FULL RETRACTION TIME | 72 | |||
12 | MAX.SLEWING SPEED( WITHOUT LOAD) | r/min | 0~2.5 | |
13 | OVERALL LENGTH | mm | 12570 | |
14 | OVERALL WIDTH | mm | 3000 | |
15 | OVERALL HEIGHT | mm | 3700 | |
16 | WHEEL BASE | mm | 3820 | |
17 | TRACK BASE | mm | 2500 | |
18 | FRONT SUSPENSION | mm | 1500 | |
19 | REAR SUSPENSION | mm | 1500 | |
20 | FRONT EXTENSION | mm | 1850 | |
21 | REAR EXTENSION | mm | 1650 | |
22 | MIN.TURNING DIAMETER | mm | 5500 | |
23 | MIN. GROUND CLEARANCE | mm | 400 | |
24 | APPROACH ANGLE | (°) | 22 | |
25 | DEPARTURE ANGLE | (°) | 22 | |
26 | VEHICLE TOTAL WEIGHT | kg | 28500 | |
27 | FRONT AXLE LOADING WEIGHT( WITH LOAD) | kg | 14500 | |
28 | REAR AXLE LOADING WEIGHT(WITH LOAD) | kg | 14000 | |
29 | MAX. TRAVELLING SPEED | km/h | 41 | |
30 | MAX. GRADEABILITY | % | 60 | |
31 | DRIVING TYPE | - | 4x4 | |
32 | ENGINE | MODEL | ISDe230 30 | |
TYPE | IN-LINE,SIX-CYLINDER,WATER-COOLED,DIESEL ENGINE | |||
DISPLACEMENT | L | 6.7 | ||
RATED POWER/TURNING SPEED | kW/r/min | 169/2200 | ||
MAX.TORQUE/TURNING SPEED | N·m/r/min | 900/1200-1700 | ||
33 | GEAR BOX | MODEL | WG180 | |
TYPE | - | PLANET ,POWER SHIFT | ||
CONTROLLING TYPE | - | ELECTRON CONTROL,POWER SHIFT | ||
34 | FRONT AXLE | MAIN REDUCTION RATIO | 19.44 | |
35 | REAR AXLE | MAIN REDUCTION RATIO | 19.44 | |
36 | REDIRECTOR | MODEL/TYPE | - | BZZ-500/FX |
STEERING TYPE | - | STEERING WHEEL | ||
37 | BRAKE SYSTEM | DRIVING BRAKE SYSTEM TYPE | - | HYDRAULIC CLIP BRAKE |
BRAKE FORCE ADJUSTING TYPE | - | RELIEF VALVE | ||
PARKING BRAKE TYPE | - | HYDRAULIC CLIP BRAKE | ||
EMERGENCY BRAKE TYPE | FOOT PEDAL | |||
38 | TIRE | MODEL/QUANTITY | 16.00R25(28 LAYERS)/4 | |
PRESSURE OF TIRE | MPa | 0.9 | ||
39 | SUSPENSION | FRONT | RIGID HANG/OIL-AIR SUSPENSION | |
REAR | SWING BRACKET | |||
40 | CABIN | PASSENGER NUMBER | 1 | |
TYPE | SINGLE DOOR | |||
- Size: 140
- Place of Origin: Shandong, China
- Brand Name: Shandong Aoqi
- Model Number: QRY30
- Weight: 30000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Shandong Aoqi Heavy Industrial Machinery co., Ltd
Our company Shandong Aoqi Heavy Industrial Machinery co.,Ltd is located in Shandong province of China.
Our products consist of Track crane, Crawler crane, Mining dump truck, Bulldozer, Rough terrain crane,
Motor grader and Pipe layer. And all of our products have been passed the certification of China national
construction machinery quality supervising test center and the ISO9001-2008 certification. Much of our
products have been exported to Africa, South American, South-east Asia and Mid-east, and the quality and
best after-sale service of our products have been widely recognized by our buyers.
Welcome to visit our factory in China and discuss the issues of cooperation, we will provided best product and first-class service for you.
After Sale Service:
According to customer requirements, we provide onsite training in China or Overseas.
Professional services team can provide the trouble shoot, inspection and maintenance.
Plenty of spare parts can satisfied your regular spare parts request.
