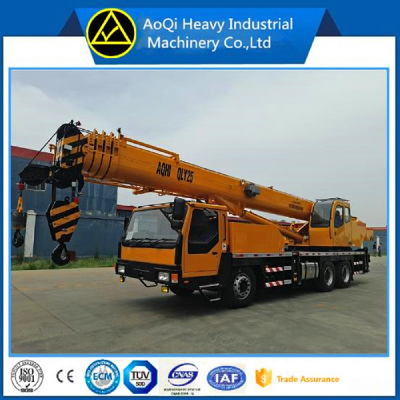

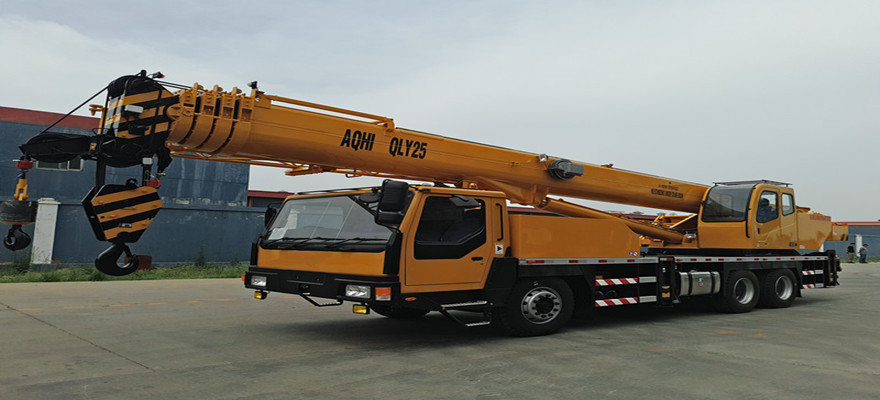

Truck Crane Features:
(1)Five-section hexagon large curve boom, the telescopic system adopt single cylinder and rope guiding devices, so ensure the super lifting ability.
(2)Full-dimensional streamline driver’s cab and newly designed operator’s cab, with wide vision and the equipment of instrument panel, CD device, A/C etc, providing high comfortable efficiently and reduce the weariness for continuous driving.
(3)Adopt the famous brand winch system to controlling the main and auxiliary hoisting system, guarantee the high lifting efficiently and stable work performance.
(4)Equipped with the LMI controlling system ,height limiter,safety valves,lights etc.
Truck Crane Parameter:
ITEM | UNIT | DATA | ||
Dimension | ||||
Overall dimension(L*W*H) | mm | 13430*2500*3550 | ||
Outrigger longitudinal span | mm | 5410 | ||
Outrigger transversal span | mm | 6150 | ||
Weight | ||||
Total weight in travel | kg | 31420 | ||
Axle load | kg | Front :7470/Rear:23950 | ||
Engine | ||||
Engine model | WP10.270N | |||
Engine rated power | HP/(r/min) | 270/2200 | ||
Engine rated torque | N.m/(r/min) | 1100/1200~1600 | ||
Working performance specifications | ||||
Max.rated lifting capacity | kg | 25000 | ||
Lifting moment for basic boom | KN.m | 980 | ||
Boom lifting height | m | 39 | ||
Jib lifting height | m | 47 | ||
Single line speed | m/min | 120 | ||
Slewing speed | r/min | 2 | ||
Travelling specifications | ||||
Max. travelling speed | Km/h | 74 | ||
Max. grade ability | % | 30 | ||
Min. turning radius | m | 12 | ||
Min. ground clearance | mm | 220 | ||
Approach angle | ° | 15.8 | ||
Departure angle | ° | 10 |
- Size: 120m3
- Place of Origin: Shandong, China
- Brand Name: Shandong Aoqi
- Model Number: QLY25
- Weight: 31420.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Unit:kg
Work Radius(m) | Boom (m) | ||||||
Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | |||||||
10.6 | 14.33 | 18.07 | 23.68 | 29.28 | 34.89 | 40.5 | |
3.0 | 25000 | 23000 | |||||
3.5 | 25000 | 23000 | 18500 | ||||
4.0 | 24500 | 22000 | 18500 | 13000 | |||
4.5 | 22500 | 21000 | 17500 | 13000 | 10700 | ||
5.0 | 21000 | 19600 | 16300 | 12500 | 10700 | ||
5.5 | 18600 | 18300 | 15300 | 12000 | 10000 | ||
6.0 | 16600 | 16500 | 14500 | 11500 | 9500 | 7500 | |
6.5 | 14600 | 14500 | 13400 | 11000 | 9000 | 7500 | |
7.0 | 13200 | 13300 | 12600 | 10500 | 8600 | 7400 | |
8.0 | 11600 | 11500 | 11250 | 9400 | 8200 | 6800 | 5800 |
9.0 | 9450 | 9300 | 8700 | 7450 | 6350 | 5800 | |
10.0 | 7850 | 7700 | 7850 | 6700 | 5850 | 5400 | |
11.0 | 6650 | 6500 | 7000 | 6300 | 5500 | 5000 | |
12.0 | 5500 | 6150 | 5750 | 5100 | 4650 | ||
13.0 | 4600 | 5300 | 5350 | 4800 | 4300 | ||
14.0 | 4000 | 4600 | 4850 | 4450 | 4100 | ||
15.0 | 4000 | 4250 | 4200 | 3900 | |||
16.0 | 3400 | 3700 | 3800 | 3600 | |||
18.0 | 2500 | 2950 | 3050 | 3100 | |||
20.0 | 1900 | 2200 | 2400 | 2600 | |||
22.0 | 1700 | 1900 | 2050 | ||||
24.0 | 1320 | 1450 | 1600 | ||||
26.0 | 1100 | 920 | |||||
28.0 | 800 | 950 | |||||
Ⅰ | 0 | 3.575 | 7.15 | 7.15 | 7.15 | 7.15 | 1250 |
Ⅱ | 0 | 0 | 0 | 5.3625 | 10.725 | 16.0875 | 21.45 |
Ratio | 8 | 8 | 6 | 5 | 4 | 3 | 3 |
Hook | 25t Main Hook |
2-2 Unit:kg
Boom Angle | Boom Jib (m) | |
Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | ||
40.5 8 | ||
5° | 30° | |
80° | 3000 | 1500 |
78° | 3000 | 1500 |
76° | 2900 | 1500 |
74° | 2800 | 1500 |
72° | 2700 | 1450 |
70° | 2500 | 1400 |
68° | 2300 | 1350 |
66° | 2050 | 1300 |
64° | 1850 | 1270 |
62° | 1650 | 1240 |
60° | 1400 | 1210 |
58° | 1200 | 1080 |
56° | 1030 | 930 |
54° | 870 | 800 |
52° | 730 | 650 |
50° | 600 | 530 |
Ratio | 1 | |
Hook | 4t Auxiliary Hook |
