- Place of Origin: China
- Brand Name: Shandong Aoqi

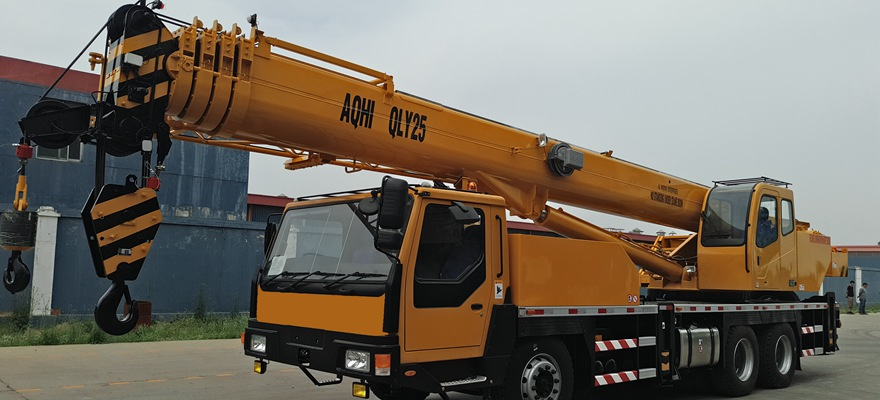

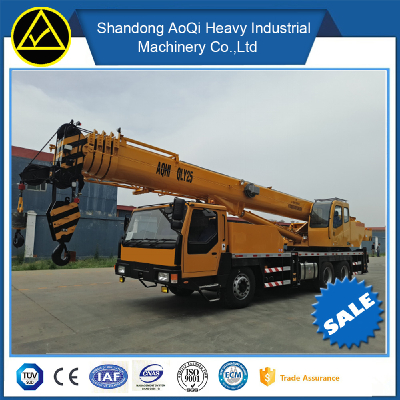

- Model Number: QLY 25
- Weight: 31420.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Features：
(1)Five-section U-shape boom, the telescopic system adopt single cylinder and rope guiding devices, so ensure the super lifting ability.
(2)Full-dimensional streamline driver’s cab and newly designed operator’s cab, with wide vision and the equipment of instrument panel,CD device,A/C etc, providing high comfortable efficiently and reduce the weariness for continuous driving.
(3)Adopt the famous brand winch system to controlling the main and auxiliary hoisting system , guarantee the high lifting efficiently and stable work performance.
(4)Equipped with the LMI controlling system, height limiter,safety valves,lights etc.
TECHNICAL PARAMENTER
ITEM | UNIT | DATA | |
Dimension | |||
Overall dimension(L*W*H) | mm | 13150*2500*3540 | |
Outrigger longitudinal span | mm | 5410 | |
Outrigger transversal span | mm | 6150 | |
Weight | |||
Total weight in travel | kg | 32000 | |
Axle load | kg | Front :6990/Rear:25010 | |
Engine | |||
Engine model | WP10.270N | ||
Engine rated power | HP/(r/min) | 270/2200 | |
Engine rated torque | N.m/(r/min) | 1100/1200~1600 | |
Working performance specifications | |||
Max.rated lifting capacity | kg | 25000 | |
Lifting moment for basic boom | KN.m | 1029 | |
Boom Length | m | 10.6-40.5 | |
Basic Boom lifting height | m | 10.7 | |
Boom lifting height | m | 40.3 | |
Boom Elevation | ° | -2 ~ 80 | |
Single line speed | m/min | 120 | |
Slewing speed | r/min | 2 | |
Travelling specifications | |||
Max. travelling speed | Km/h | 75 | |
Max. grade ability | % | 30 | |
Axle Base | mm | 4325/1350 | |
Wheel Base | mm | 2050/1840 | |
Min. turning radius | m | 12 | |
Min. ground clearance | mm | 305 | |
Approach angle | ° | 15.8 | |
Departure angle | ° | 10.3 | |
