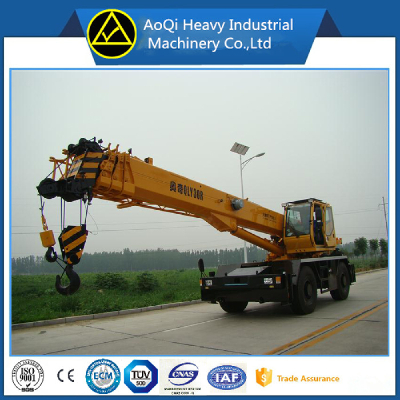

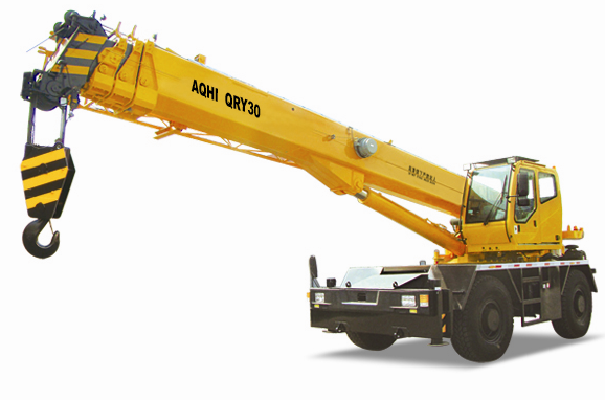

2

MAX. RATED LIFTING CAPACITY

kg

30000

3

BASIC BOOM LENGTH

mm

9800

4

FULL EXTENSION BOOM LENGTH

mm

31000

5

MAX. ELEVATON ANGLE OF BOOM

(°)

80

6

MIN.ELEVATION ANGLE OF BOOM

(°)

-3

7

LONGITUDINAL SPAN OF OUTRIGGER

mm

6810

8

LATERAL SPAN OF OUTRIGGER

mm

6800

9

MAX.SPEED OF SINGLE LINE

m/min

83

10

LUFFING TIME

HOISTING BOOM

s

77

LOWER BOOM

28

11

TELESCOPING TIME

FULL EXTENSION TIME

s

90

FULL RETRACTION TIME

72

12

MAX.SLEWING SPEED( WITHOUT LOAD)

r/min

0~2.5

13

OVERALL LENGTH

mm

12570

14

OVERALL WIDTH

mm

3000

15

OVERALL HEIGHT

mm

3700

16

WHEEL BASE

mm

3820

17

TRACK BASE

mm

2500

18

FRONT SUSPENSION

mm

1500

19

REAR SUSPENSION

mm

1500

20

FRONT EXTENSION

mm

1850

21

REAR EXTENSION

mm

1650

22

MIN.TURNING DIAMETER

mm

5500

23

MIN. GROUND CLEARANCE

mm

400

24

APPROACH ANGLE

(°)

22

25

DEPARTURE ANGLE

(°)

22

26

VEHICLE TOTAL WEIGHT

kg

28500

27

FRONT AXLE LOADING WEIGHT( WITH LOAD)

kg

14500

28

REAR AXLE LOADING WEIGHT(WITH LOAD)

kg

14000

29

MAX. TRAVELLING SPEED

km/h

41

30

MAX. GRADEABILITY

%

60

31

DRIVING TYPE

4x4

32

ENGINE

MODEL

ISDe230 30

TYPE

IN-LINE,SIX-CYLINDER,WATER-COOLED,DIESEL ENGIN

DISPLACEMENT

L

6.7

RATED POWER/TURNING SPEED

kW/r/min

169/2200

MAX.TORQUE/TURNING SPEED

N·m/r/min

900/1200-1700

33

GEAR BOX

MODEL

WG180

TYPE

PLANET ,POWER SHIFT

CONTROLLING TYPE

ELECTRON CONTROL,POWER SHIFT

34

FRONT AXLE

MAIN REDUCTION RATIO

19.44

35

REAR AXLE

MAIN REDUCTION RATIO

19.44

36

REDIRECTOR

MODEL/TYPE

BZZ-500/FX

STEERING TYPE

STEERING WHEEL

37

BRAKE SYSTEM

DRIVING BRAKE SYSTEM TYPE

HYDRAULIC CLIP BRAKE

BRAKE FORCE ADJUSTING TYPE

RELIEF VALVE

PARKING BRAKE TYPE

HYDRAULIC CLIP BRAKE

EMERGENCY BRAKE TYPE

FOOT PEDAL

38

TIRE

MODEL/QUANTITY

16.00R25(28 LAYERS)/4

PRESSURE OF TIRE

MPa

0.9

39

SUSPENSION

FRONT

RIGID HANG/OIL-AIR SUSPENSION

REAR

SWING BRACKET

40

CABIN

PASSENGER NUMBER

1

TYPE

SINGLE DOOR
