- Place of Origin: China
- Brand Name: Shandong Aoqi

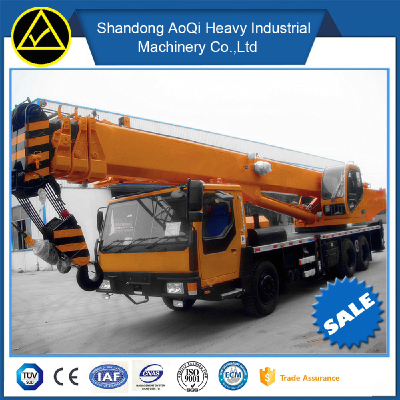

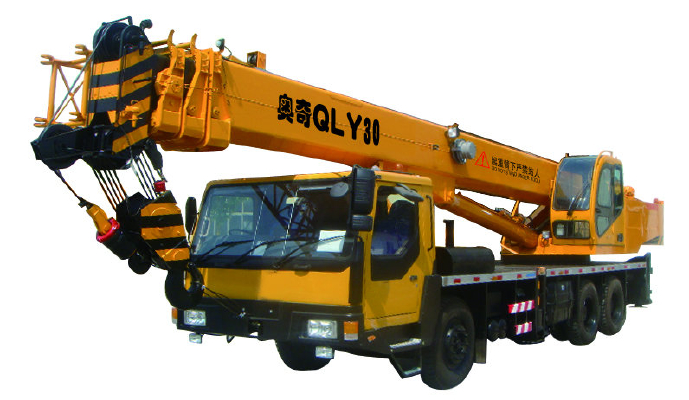

- Model Number: QLY 30
- Weight: 31420.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Features：
1. Four-section hexagon large curve boom, the telescopic system adopt single cylinder and rope guiding devices, so ensure the super lifting ability.
2. Full-dimensional streamline driver’s cab and newly designed operator’s cab, with wide vision and the equipment of instrument panel,CD deviceA/C etc, providing high comfortable efficiently and reduce the weariness for continuous driving.
3. Adopt the famous brand winch system to controlling the main and auxiliary hoisting system , guarantee the high lifting efficiently and stable work performance.
4. Equipped with the LMI controlling system ,height limiter,safety valves,lights etc.
5. Adopt the rod type operation system
TECHNICAL PARAMENTER
ITEM | UNIT | DATA |
Overall dimension | ||
Overall length | mm | 13530 |
Overall width | mm | 2500 |
Overall height | mm | 3550 |
Total weight in travel | kg | 31420 |
Front axle load | kg | 7470 |
Rear axle load | kg | 23950 |
Engine | ||
Engine model | WP10.270N | |
Engine rated power | Kw/(r/min) | 199/2200 |
Engine rated torque | N.m/(r/min) | 1100/1200~1600 |
Travelling specifications | ||
Max. travel speed | Km/h | 74 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 220 |
Approach angle | ° | 15.8 |
Departure angle | ° | 10 |
Max. grade ability | % | 30 |
Fuel consumption for 100km | L | 40 |
Working performance specifications | ||
Max. rated lifting capacity | t | 30 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.86 |
Max. lifting torque | KN.M | 1010 |
Base boom | m | 10.5 |
Fully extended boom | m | 33 |
Fully extended boom jib | m | 41 |
Longitudinal outrigger span | m | 5.41 |
Lateral outrigger span | m | 6.15 |
Working speed | ||
Boom luffing time | s | 93 |
Boom full extension time | s | 110 |
Max. swing speed | r/min | 2.0 |
Max. speed of main. winch (single rope) | m/min | 123 |
Max. speed of aux. winch (single rope) | m/min | ≤120 |
- Place of Origin: China
- Brand Name: Shandong Aoqi
- Model Number: QLY 30
- Weight: 31420.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
TECHNICAL PARAMENTER
ITEM | UNIT | DATA |
Overall dimension | ||
Overall length | mm | 13530 |
Overall width | mm | 2500 |
Overall height | mm | 3550 |
Total weight in travel | kg | 31420 |
Front axle load | kg | 7470 |
Rear axle load | kg | 23950 |
Engine | ||
Engine model | WP10.270N | |
Engine rated power | Kw/(r/min) | 199/2200 |
Engine rated torque | N.m/(r/min) | 1100/1200~1600 |
Travelling specifications | ||
Max. travel speed | Km/h | 74 |
Min. turning diameter | m | 24 |
Min. ground clearance | mm | 220 |
Approach angle | ° | 15.8 |
Departure angle | ° | 10 |
Max. grade ability | % | 30 |
Fuel consumption for 100km | L | 40 |
Working performance specifications | ||
Max. rated lifting capacity | t | 30 |
Min. rated working radius | mm | 3000 |
Turning radius at turntable tail | m | 3.86 |
Max. lifting torque | KN.M | 1010 |
Base boom | m | 10.5 |
Fully extended boom | m | 33 |
Fully extended boom jib | m | 41 |
Longitudinal outrigger span | m | 5.41 |
Lateral outrigger span | m | 6.15 |
Working speed | ||
Boom luffing time | s | 93 |
Boom full extension time | s | 110 |
Max. swing speed | r/min | 2.0 |
Max. speed of main. winch (single rope) | m/min | 123 |
Max. speed of aux. winch (single rope) | m/min | ≤120 |
RATED LIFTING LOAD CHART
Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | ||||||||
BOOM(m) | Boom Elevation Angle (°) | (33m)Boom (8m)Jib | ||||||
10.5 | 16.13 | 21.75 | 27.38 | 33 | ||||
Ratio | 10 | 8 | 6 | 4 | 3 | Jib angle (5°) | Jib angle (30°) | |
Working Radius (m) | Lifting Load (kg) | Lifting Load (kg) | Lifting Load (kg) | Lifting Load (kg) | Lifting Load (kg) | Lifting load | Lifting load | |
3.0 | 30000 | 80 | 3000 | 1500 | ||||
3.5 | 30000 | 20000 | 78 | 3000 | 1500 | |||
4.0 | 27500 | 20000 | 16400 | 76 | 2900 | 1500 | ||
4.5 | 24500 | 20000 | 15400 | 74 | 2800 | 1500 | ||
5.0 | 22200 | 19000 | 14400 | 11000 | 72 | 2700 | 1450 | |
5.5 | 20000 | 18200 | 13500 | 10600 | 70 | 2500 | 1400 | |
6.0 | 18000 | 17200 | 12900 | 10200 | 7900 | 68 | 2300 | 1350 |
6.5 | 16000 | 16000 | 12400 | 9800 | 7600 | 66 | 2050 | 1300 |
7.0 | 13800 | 14300 | 11600 | 9300 | 7200 | 64 | 1850 | 1270 |
8.0 | 10900 | 11500 | 10500 | 8600 | 6400 | 62 | 1650 | 1240 |
9.0 | 9200 | 9500 | 7850 | 5900 | 60 | 1400 | 1210 | |
10.0 | 7500 | 8000 | 7150 | 5600 | 58 | 1200 | 1080 | |
11.0 | 6400 | 6800 | 6520 | 5300 | 56 | 1030 | 930 | |
12.0 | 5400 | 5800 | 5800 | 5000 | 54 | 870 | 800 | |
14.0 | 3700 | 4300 | 4500 | 4200 | 50 | 600 | 530 | |
16.0 | 3200 | 3300 | 3300 | |||||
18.0 | 2400 | 2500 | 2500 | |||||
20.0 | 1900 | 1900 | ||||||
22.0 | 1400 | 1500 | ||||||
24.0 | 1100 | 1100 | ||||||
26.0 | 800 | |||||||
28.0 | 550 | |||||||
30.0 | ||||||||
