- Size: 13.15 m* 2.5 m * 3.54 m
- Place of Origin: CHINA
- Brand Name: Shandong Aoqi
- Model Number: QY25C
- Weight: 32000.000 kg

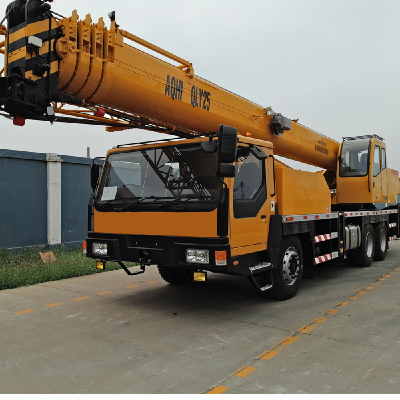

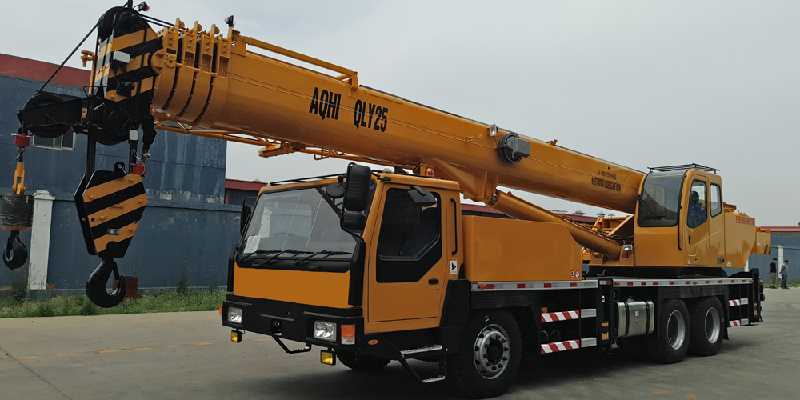

QLY25 TRUCK CRANE
Features：
(1)Five-section U-shape boom, the telescopic system adopt single cylinder and rope guiding devices, so ensure the super lifting ability.
(2)Full-dimensional streamline driver’s cab and newly designed operator’s cab, with wide vision and the equipment of instrument panel,CD device,A/C etc, providing high comfortable efficiently and reduce the weariness for continuous driving.
(3)Adopt the famous brand winch system to controlling the main and auxiliary hoisting system , guarantee the high lifting efficiently and stable work performance.
(4)Equipped with the LMI controlling system, height limiter,safety valves,lights etc.
- Size: 13.15 m* 2.5 m * 3.54 m
- Place of Origin: CHINA
- Brand Name: Shandong Aoqi
- Model Number: QY25C
- Weight: 32000.000 kg
TECHNICAL PARAMENTER
ITEM | UNIT | DATA | |
Dimension | |||
Overall dimension(L*W*H) | mm | 13150*2500*3540 | |
Outrigger longitudinal span | mm | 5410 | |
Outrigger transversal span | mm | 6150 | |
Weight | |||
Total weight in travel | kg | 32000 | |
Axle load | kg | Front :6990/Rear:25010 | |
Engine | |||
Engine model | WP10.270N | ||
Engine rated power | HP/(r/min) | 270/2200 | |
Engine rated torque | N.m/(r/min) | 1100/1200~1600 | |
Working performance specifications | |||
Max.rated lifting capacity | kg | 25000 | |
Lifting moment for basic boom | KN.m | 1029 | |
Boom Length | m | 10.6-40.5 | |
Basic Boom lifting height | m | 10.7 | |
Boom lifting height | m | 40.3 | |
Boom Elevation | ° | -2 ~ 80 | |
Single line speed | m/min | 120 | |
Slewing speed | r/min | 2 | |
Travelling specifications | |||
Max. travelling speed | Km/h | 75 | |
Max. grade ability | % | 30 | |
Axle Base | mm | 4325/1350 | |
Wheel Base | mm | 2050/1840 | |
Min. turning radius | m | 12 | |
Min. ground clearance | mm | 305 | |
Approach angle | ° | 15.8 | |
Departure angle | ° | 10.3 | |
RATED LIFTING LOAD CHART
2－1 Unit：kg
Work Radius（m） | Boom (m) | ||||||
Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | |||||||
10.6 | 14.33 | 18.07 | 23.68 | 29.28 | 34.89 | 40.5 | |
3.0 | 25000 | 23000 | |||||
3.5 | 25000 | 23000 | 18500 | ||||
4.0 | 24500 | 22000 | 18500 | 13000 | |||
4.5 | 22500 | 21000 | 17500 | 13000 | 10700 | ||
5.0 | 21000 | 19600 | 16300 | 12500 | 10700 | ||
5.5 | 18600 | 18300 | 15300 | 12000 | 10000 | ||
6.0 | 16600 | 16500 | 14500 | 11500 | 9500 | 7500 | |
6.5 | 14600 | 14500 | 13400 | 11000 | 9000 | 7500 | |
7.0 | 13200 | 13300 | 12600 | 10500 | 8600 | 7400 | |
8.0 | 11600 | 11500 | 11250 | 9400 | 8200 | 6800 | 5800 |
9.0 | 9450 | 9300 | 8700 | 7450 | 6350 | 5800 | |
10.0 | 7850 | 7700 | 7850 | 6700 | 5850 | 5400 | |
11.0 | 6650 | 6500 | 7000 | 6300 | 5500 | 5000 | |
12.0 | 5500 | 6150 | 5750 | 5100 | 4650 | ||
13.0 | 4600 | 5300 | 5350 | 4800 | 4300 | ||
14.0 | 4000 | 4600 | 4850 | 4450 | 4100 | ||
15.0 | 4000 | 4250 | 4200 | 3900 | |||
16.0 | 3400 | 3700 | 3800 | 3600 | |||
18.0 | 2500 | 2950 | 3050 | 3100 | |||
20.0 | 1900 | 2200 | 2400 | 2600 | |||
22.0 | 1700 | 1900 | 2050 | ||||
24.0 | 1320 | 1450 | 1600 | ||||
26.0 | 1100 | 920 | |||||
28.0 | 800 | 950 | |||||
Ⅰ | 0 | 3.575 | 7.15 | 7.15 | 7.15 | 7.15 | 1250 |
Ⅱ | 0 | 0 | 0 | 5.3625 | 10.725 | 16.0875 | 21.45 |
Ratio | 8 | 8 | 6 | 5 | 4 | 3 | 3 |
Hook | 25t Main Hook | ||||||
2－2 Unit：kg
Boom Angle | Boom Jib (m) | |
Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | ||
40.5 8 | ||
5° | 30° | |
80° | 3000 | 1500 |
78° | 3000 | 1500 |
76° | 2900 | 1500 |
74° | 2800 | 1500 |
72° | 2700 | 1450 |
70° | 2500 | 1400 |
68° | 2300 | 1350 |
66° | 2050 | 1300 |
64° | 1850 | 1270 |
62° | 1650 | 1240 |
60° | 1400 | 1210 |
58° | 1200 | 1080 |
56° | 1030 | 930 |
54° | 870 | 800 |
52° | 730 | 650 |
50° | 600 | 530 |
Ratio | 1 | |
Hook | 4t Auxiliary Hook | |
