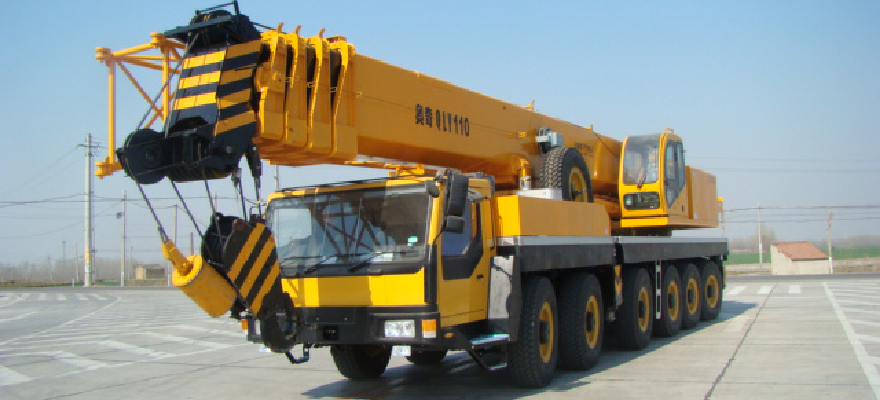

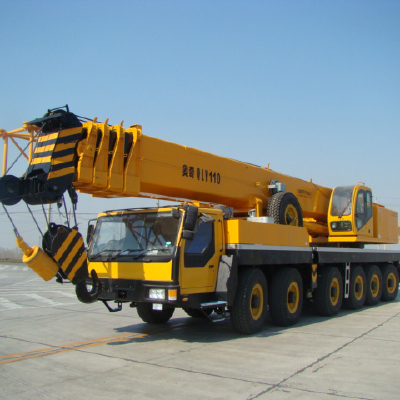

QLY110 TRUCK CRANE
Features:
1. Five-section hexagon large curve boom, double-cylinder front support luffing, two-section jibs.
2. Double H type outrigger and with the front 5th outrigger which can realizes 360°full slewing lifting work.
3. The machine adopted the pilot handle control technique.
4. Adopted full-head luxury chassis cabin, and superstructure integral operating cabin with large view, fully
covered walking plate at the left side and right side. Full-dimensional streamline driver’s cab, equipped
with panel,CD device,A/C etc, providing high comfortable efficiently and reduce the weariness for
continuous driving.
5. Adopt the famous brand winch system to controlling the main and auxiliary hoisting system , guarantee
the high lifting efficiently and stable work performance.
6. Equipped with the LMI controlling system ,height limiter,safety valves,lights etc.
7. Adopt the rod type operation system.
8. Be ahead of domestic industry by its “ environment protection , safety , reliability and advanced”.
Contact Information
SHANDONG AOQI HEAVY INDUSTRIAL MECHINRY CO.,LTD.
ADD: FANZHEN INDUSTRIAL PARK,TAIAN, SAHNDONG, CHINA.
Contact Person: Peter Zhang
Mobile & whatsapp: 008615069893052
Tel:0086-538-6120091
Fax:0086-538-6120091
Email: zhangguodong_3@live.com
- Size: 16.05 m * 2.9 m * 3.99 m
- Place of Origin: CHINA
- Brand Name: Shandong Aoqi
- Model Number: QY110
- Weight: 75220.000 kg
TECHNICAL PARAMENTER
ITEM | UNIT | DATA | |||
Dimension | |||||
Overall dimension(L*W*H) | mm | ||||
Outrigger longitudinal span | mm | 7700 | |||
Outrigger transversal span | mm | 7600 | |||
Weight | |||||
Total weight in travel | kg | 71000 | |||
Axle load | kg | Front :11500*2/Rear:12000*4 | |||
Engine | |||||
Engine model | BENZ OM502LA.III/1 | ||||
Engine rated power | HP/(r/min) | 476/1800 | |||
Engine rated torque | N.m/(r/min) | 2300/1080 | |||
Working performance specifications | |||||
Max. rated lifting capacity | kg | 110000 | |||
Lifting moment for basic boom | KN.m | 3234 | |||
Boom lifting height | m | 50.2 | |||
Jib lifting height | m | 67 | |||
Single line speed | m/min | 75 | |||
Slewing speed | r/min | 2 | |||
Travelling specifications | |||||
Max. travelling speed | Km/h | 70 | |||
Max. grade ability | % | 60 | |||
m | 12 | ||||
Min. ground clearance | mm | 300 | |||
Approach angle | ° | 21 | |||
Departure angle | ° | 14 | |||
RATED LIFTING LOAD CHART
2－1 Unit：kg
Work Radius（m） | Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | |||||||||
13 | 22.25 | 31.5 | 40.75 | 50 | ||||||
Lifting load (Kg) | Lifting height (m) | Lifting Load (Kg) | Lifting Height (m) | Lifting Load (Kg) | Lifting Height (m) | Lifting Load (Kg) | Lifting Height (m) | Lifting Load (Kg) | Lifting Height (m) | |
3.0 | 110000 | 13.2 | ||||||||
3.5 | 100000 | 13.0 | ||||||||
4.0 | 89500 | 12.8 | 60000 | 22.8 | ||||||
4.5 | 77500 | 12.5 | 60000 | 22.7 | ||||||
5.0 | 66200 | 12.2 | 60000 | 22.6 | 33000 | 32.0 | ||||
6.0 | 54600 | 11.6 | 51800 | 22.2 | 33000 | 31.8 | ||||
7.0 | 45200 | 10.7 | 41000 | 21.8 | 33000 | 31.5 | 20000 | 41.2 | ||
8.0 | 38300 | 9.7 | 33500 | 21.3 | 29800 | 31.2 | 20000 | 40.9 | ||
9.0 | 31200 | 8.3 | 28600 | 20.8 | 26000 | 30.8 | 20000 | 40.6 | 13000 | 50.2 |
10.0 | 25200 | 6.5 | 23200 | 20.2 | 23200 | 30.5 | 20000 | 40.4 | 13000 | 50.0 |
11.0 | 18600 | 19.5 | 20600 | 30.1 | 18600 | 40.0 | 13000 | 49.7 | ||
12.0 | 15200 | 18.8 | 17600 | 29.7 | 17000 | 39.6 | 13000 | 49.4 | ||
14.0 | 10200 | 17.0 | 12600 | 28.6 | 13600 | 38.9 | 11200 | 48.8 | ||
16.0 | 7000 | 14.6 | 9400 | 27.3 | 10200 | 38.0 | 9800 | 48.1 | ||
18.0 | 4800 | 11.4 | 7000 | 25.8 | 7800 | 37.0 | 8500 | 47.3 | ||
20.0 | 5200 | 24.1 | 6200 | 35.8 | 6800 | 46.4 | ||||
22.0 | 3800 | 21.8 | 4800 | 34.4 | 5400 | 45.3 | ||||
24.0 | 2700 | 19.3 | 3700 | 32.9 | 4200 | 44.2 | ||||
26.0 | 1800 | 16.0 | 2800 | 31.1 | 3400 | 42.9 | ||||
28.0 | 1000 | 11.3 | 2100 | 29.1 | 2600 | 41.5 | ||||
30.0 | 1400 | 26.8 | 2000 | 39.9 | ||||||
32.0 | 900 | 24.0 | 1500 | 38.2 | ||||||
34.0 | 1000 | 36.2 | ||||||||
36.0 | 600 | 34.0 | ||||||||
Ⅰ | 0 | 9.25 | 9.25 | 9.25 | 9.25 | |||||
Ⅱ | 0 | 0 | 3.083 | 6.167 | 9.25 | |||||
Boom Min Angle | -2° | -2° | -2° | 26° | 38° | |||||
Ratio | 14 | 9 | 5 | 3 | 3 | |||||
Hook | 110t主吊钩 | 60t吊钩 | ||||||||
2－2 Unit：kg
Boom Angle | Boom Jib (m) | |||
Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger ,boom 360°working | ||||
50.0 9.5 | 50.0 16.0 | |||
5° | 30° | 5° | 30° | |
82° | 6000 | 2500 | 4000 | 1300 |
80° | 6000 | 2500 | 4000 | 1300 |
78° | 5500 | 2400 | 3600 | 1200 |
76° | 5000 | 2300 | 3200 | 1150 |
74° | 4500 | 2200 | 3000 | 1100 |
72° | 4000 | 2100 | 2700 | 1050 |
70° | 3700 | 2050 | 2500 | 1000 |
68° | 3400 | 1950 | 2400 | 950 |
66° | 3200 | 1900 | 2200 | 900 |
64° | 2900 | 1850 | 2100 | 850 |
62° | 2400 | 1700 | 1800 | 800 |
60° | 2000 | 1600 | 1500 | 750 |
58° | 1600 | 1350 | 1200 | 700 |
56° | 1400 | 1150 | 800 | 400 |
54° | 1100 | 900 | ||
Ⅰ | 9.25m | 9.25m | ||
Ⅱ | 9.25m | 9.25m | ||
Boom Min Angle | 46° | 48° | 50° | 54° |
Ratio | 1 | |||
Hook | 6t Auxiliary Hook | |||
